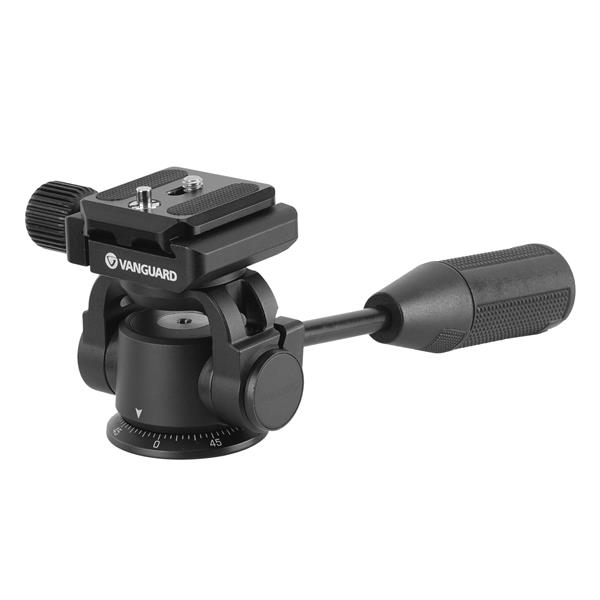

Vanguard VEO PH-26 Arca Compatible 2-Way Pan Head For Spotting Scopes
Product Code: 9775992V
Share this item:
The VEO PH-26 2-way pan head is a smooth and compact head that is great for a travel to mid-sized tripod. With all the locking control in the handle, you can follow a bird in flight and lock down with one hand, while keeping the focus and zoom just right with your other hand.
Vanguard VEO PH-26 Arca Compatible 2-Way Pan Head For Spotting Scopes
Vanguard's VEO PH-26 2-way pan head is the perfect choice for using a spotting scope on a travel tripod.
This 2-way pan head CNC machined from lightweight aluminium alloy that delivers a maximum load capacity of up to 6kg, more that enough for any spotting scope.
All the movement is controlled by the one telescopic handle. Turning the handle anti-clockwise releases the lock, allowing the head to pan 360° and tilt from -90° to +30°. This delivers a smooth, intuitive movement and allows you to use one hand to follow a bird in flight, then lock off the movement when the bird has landed, while your other hand is free to control the focus and zoom on your spotting scope.
The head includes a long, slim Arca compatible QS-71P quick shoe with a non-twist spring pin that is designed for the foot of a spotting scope or long camera lens. The position of the 1/4" thread can be adjusted to ensure that the spring pin can slot into the non-twist hole on the base of any spotting scope. Fitted properly, this ensures that the quick release plate doesn't come lose in use.
Many manufacturers are designing the foot of their spotting scopes to be Arca compatible, This means you can attach the spotting scope directly to this tripod head without the need for the quick release plate for the most secure hold.
You can also use this head for your binoculars, with a suitable adaptor, such as the VEO BA-185.
It can also be used for a camera. To make it a 3-way pan head, we'd recommend using a QS-74 quick shoe, as this has 4-sides that fit into the clamp and allow the camera to be positioned in the clamp in a position that allows landscape photographs
To attach to a tripod, there is a 3/8" thread hole in the base, with a 1/4" adaptor, allowing it to fit any tripod. That said, with a 50mm base, this head is designed for smaller, travel sized tripods. For larger tripods we'd recommend the VEO PH-28 which has a 58mm base.
All in all, this is a great tripod head to make the most of your spotting scope in the field.
- Comfortable, telescopic textured handle for easy grip, even in damp or cold conditions
- Supports a maximum load capacity of up to 6kg
- Control vertical tilt and panning through the handle
- Arca Swiss compatible quick release system
- Super compact quick release plate with non-twist spring pin
- Weighs just 510g with a 50mm base
For a a smaller travel tripod we would recommend the super compact VEO PH-24 with a 42mm base, and for a full sized tripod we would recommend a VEO PH-28 with a 58mm base.
